Commercial Masonry Retaining Walls in Brick Masters Pittsburgh, PA

We construct commercial masonry retaining walls in Brick Masters Pittsburgh, PA for site development, parking lots, and property boundaries. Our walls are engineered for loads and drainage to prevent failure. Provide your site plans and we will design a retaining solution that fits your project.

Brick Masters Pittsburgh provides professional commercial masonry retaining walls throughout Brick Masters Pittsburgh, PA, Pennsylvania and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call (412) 388-2632 or request your free quote.

Commercial Retaining Walls Built for Pittsburgh Conditions

Commercial masonry retaining walls in Pittsburgh are not just about looks. They have to hold back saturated hillside soils, survive freeze-thaw cycles, and stand up to years of traffic vibration and salt exposure. Brick Masters Pittsburgh designs and builds walls specifically for these conditions, not from a generic national template.

When we meet with a property owner, facility manager, or GC, we start by walking the site. We look at slope angles, existing drainage patterns, nearby structures, and how the wall will interact with parking lots, sidewalks, or loading areas. In older parts of Pittsburgh and surrounding townships, we often find mix-and-match fill, slag, and clay soils. That directly affects how deep the footing must go, what type of reinforcement is needed, and how we handle drainage behind the wall.

Our focus is on structural performance first. We design commercial retaining walls to resist overturning, sliding, and settlement using appropriate masonry materials and reinforced concrete. From there, we address appearance and long-term maintenance so the wall supports your property use and your branding instead of becoming a constant repair line item.

Materials and Structural Options for Commercial Masonry Retaining Walls

Brick Masters Pittsburgh works with several structural systems, and we match the wall type to the site conditions and your use requirements.

For heavy-duty applications such as truck loading docks, dumpster enclosures built into slopes, or grade separation beside roadways, we typically recommend reinforced concrete core walls faced with brick, architectural block, or stone veneer. The concrete provides the structural strength, while the masonry facing delivers the appearance and durability you want. Rebar layout, footing size, and wall thickness are engineered based on wall height, soil pressure, and surcharge (like parked vehicles or adjacent structures).

In some commercial landscapes and multifamily properties, segmental masonry retaining walls are more appropriate. These use interlocking concrete masonry units, sometimes with geogrid reinforcement that extends back into the soil. These systems are effective for taller terraced slopes and can be easier to expand later if you anticipate future site changes.

For visible customer-facing areas, such as office parks along McKnight Road or retail fronts near the waterfront, we often integrate brick or stone veneers that match existing buildings. We can combine cast-in-place or CMU structural cores with custom veneers to tie your retaining walls into your architectural design. Throughout the process, Brick Masters Pittsburgh focuses on using materials that can handle Pittsburgh’s winter salting, repeated freeze-thaw cycles, and run-off from steep adjacent streets.

How We Design and Engineer Your Commercial Retaining Wall

Commercial masonry retaining walls should never be improvised in the field. At Brick Masters Pittsburgh, we follow a defined design and engineering process so the wall works as a system and complies with local requirements.

First, we gather site data. That can include survey information, soil reports if available, and existing plans. If no geotechnical report exists and the wall will be significant in height or carry heavy surcharge, we often recommend involving a soils engineer. This is especially important in hillside sites in neighborhoods like Mount Washington or Beechview where subsurface conditions can change rapidly over short distances.

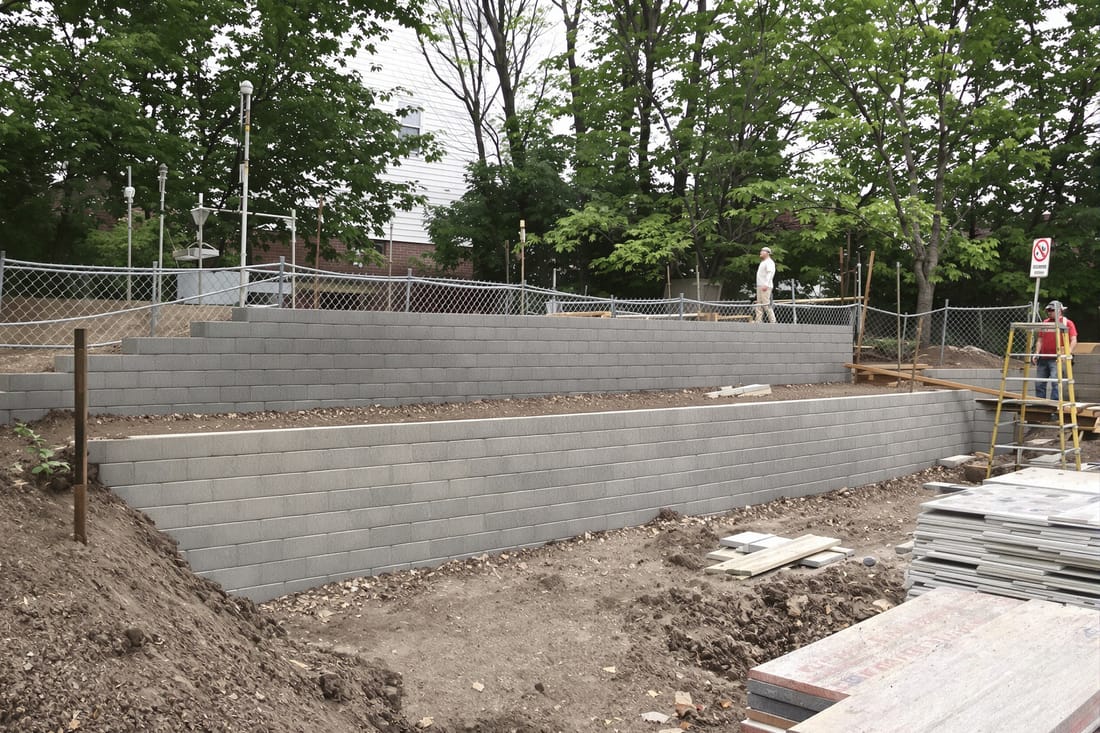

Next, we work through preliminary layout and height. We look at whether a single tall wall or a series of stepped or terraced walls is more appropriate. Terracing can reduce individual wall loads and sometimes eliminate the need for heavy structural components, which directly affects cost.

Then we develop a structural design. This covers footing depth and width, rebar size and spacing, block or unit type, geogrid length and spacing if used, and drainage details. For walls exceeding certain heights or supporting structures, we coordinate stamped engineering drawings as required by local code and your permitting authority.

Finally, we select finishes and details. This includes the choice of visible masonry units or veneers, coping or cap styles, integrated guardrails or fences where needed, and tie-ins to adjacent pavements or stairs. By working through these steps methodically, Brick Masters Pittsburgh delivers commercial retaining walls that are both buildable and maintainable, not just theoretical drawings that cause change orders later.

Construction Process: What to Expect On Site

Construction of a commercial masonry retaining wall affects operations on your property, so we plan sequencing carefully. Before we dig, Brick Masters Pittsburgh calls in utility locates and confirms any private utilities from as-built drawings or site representatives. We coordinate work hours, truck access, and staging areas with your team to keep traffic and customer access as clear as possible.

Excavation is performed to the engineered depth and width, including space for base material and drainage. In many Pittsburgh sites we must manage groundwater or seeps, especially along cuts into hillsides. We address this with temporary dewatering and permanent drainage solutions instead of trying to ignore the water. Subgrade is compacted to specified density, then we install base stone or lean concrete as required by the design.

We then install formwork and reinforcement for concrete footings and any structural walls, or we begin placing CMU or segmental units according to the system. Rebar placement, grouting, and core filling are completed in lifts to match engineering specifications. Throughout this process, we keep wall alignment, batter, and elevation under constant check so the finished wall ties neatly into sidewalks, curbs, and building entrances.

Drainage components, including weep holes, perforated pipe, and free-draining backfill, are installed as the wall goes up, not left as an afterthought. For segmental systems with geogrid, we coordinate grid placement and backfill lifts so compaction does not shift the wall face. Final steps include caps or coping, joint tooling or sealing where appropriate, touch-up grading, and restoration of disturbed areas so your site is ready for use without lingering construction scars.

Cost Drivers, Common Failures, and How We Prevent Them

The cost of commercial masonry retaining walls in Pittsburgh is driven by more than just square footage. Key cost factors include wall height, the type of masonry system, required engineering, access conditions, and how much earthwork and drainage improvement is needed.

Tall walls, or walls that support parking lots or structures, demand more concrete, more reinforcement, and often geotechnical input. Sites with limited access, such as tight alleys in older commercial districts, may require smaller equipment and more hand work, which raises labor time. If existing drainage is poor, we may include underdrains, interceptor drains, or regrading to keep hydrostatic pressure off the wall. These elements add up front cost, but they are far cheaper than rebuilding a failed structure.

Common failures we see in older or poorly built commercial retaining walls include forward leaning, cracked faces, bulging, and water staining through joints. Many of these result from undersized footings, no reinforcement, or missing drainage behind the wall. In some Pittsburgh hillsides we also see sliding due to wet clay layers or old fill material that was never compacted correctly.

Brick Masters Pittsburgh focuses on preventing these problems. We size footings and reinforcement for realistic loads, not minimal code. We include proper drainage and filter fabrics to prevent soil migration. Where existing conditions are questionable, we are candid about the need for soil improvement or stepped wall layouts rather than trying to force a tall unsupported wall onto bad ground. This approach protects your investment and helps avoid liability from wall movement near walkways, parking areas, or neighboring properties.

Planning, Permits, and How to Work With Brick Masters Pittsburgh

Before you commit to a commercial masonry retaining wall, it is important to understand the administrative side. In many municipalities around Pittsburgh, retaining walls above a certain height or located near property lines require permits and sometimes engineered drawings. If a wall supports a public sidewalk or is close to a roadway, additional approvals may be involved.

Brick Masters Pittsburgh assists with this process by providing detailed proposals, layout information, and, when needed, connecting you with local engineers familiar with city and township requirements. We can coordinate submittals for material specifications, shop drawings, and phasing plans that general contractors often need for larger projects.

From your side, helpful information includes any existing site plans, prior geotechnical reports, and knowledge of long-term plans for the property. For example, if you may expand a parking area in the next few years, we can design the wall to support that future load rather than build something that has to be replaced.

When you contact Brick Masters Pittsburgh about commercial retaining walls, expect direct answers about feasibility, timelines, and realistic budgets. We inspect the site, discuss options, and provide a written scope that spells out what is included, what assumptions we are making, and what conditions could change pricing, such as unexpected underground obstructions. This transparent approach keeps surprises to a minimum and gives you a retaining wall that performs as intended over the long term in western Pennsylvania conditions.
